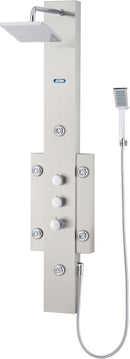

Elegance, durability and functionality are standard features you will find in the shower panel systems. This unit offers a directional rainfall showerhead, 6 directional body jets and a convenient hand shower to create a relaxing or re-invigorating shower with each use. Transform any traditional shower into a luxurious experience by indulging into the many features of this unit.
Features:
- All inclusive, pre-plumbed shower panel system
- 6 Body jets and convenient hand shower with 5' brass constructed hose
- Equipped with diverter valve to allow for easy selection between the shower panel functions including showerhead, body jets and hand shower
- Maintain constant water temperature with the pre-installed thermostatic valve
- Installation requires plumbing into the wall to connect to existing hot and cold supply lines; connection requires 3/8'' male compression threads
- Recommended installation by a licensed plumber
- UPC certified
- Minimal assembly out of box; hardware included for installation
- Constructed of durable stainless steel; corrosion resistant with anti-fingerprint application
- Offers a unique shower experience each use with its 8 water outlets including the 8'' rainfall showerhead
- Manufacturer provides limited lifetime warranty
Dimensions:
- Overall Product Weight: 21 Pounds
Weights & Dimensions
Shower Head
- Shower Head Width - Side to Side: 8 Inches
Panel
- Panel Thickness – Front to Back: 19 Inches
- Panel Width - Side to Side: 11.625 Inches
- Panel Height - Top to Bottom: 55.75 Inches
Hand Shower
- Hose Length: 60 Inches
Additional Weights and Dimensions:
- Inlet Diameter: 0.375 Inches
- Supply Length: 24 Inches
- Faucet Hole Diameter: 4 Inches
- Overall Product Weight: 21 Pounds
Specifications
Product Type: Shower panels | Material Details: Stainless Steel |
Maximum Flow Rate: 2.5 Gallons per Minute (GPM) | Shutoff Valve Material: Zinc alloy |
Number of Body Jets: 6 | Number of Faucet Handles: 3 |
ADA Compliant: No | Assembly Required: Yes |
Product Warranty: Lifetime on structure; 2 years on parts | Shower Head Type: Adjustable shower head |
Adjustable Body Jets: Yes | Faucet Handle Type: Knob |
Installation Required: Yes | Style: Modern |
Faucet Handle Temperature Limit: Yes | ASME A112.18.1 Compliant: Yes |
Faucet Handle Material: Metal | Finish: Stainless Steel |
Faucet Handle Material Details: Zinc alloy | ASSE 1016 Compliant: Yes |
Hardware Finish: Chrome | CSA B125.1 Certified: Yes |
Material: Metal | Hardware Material: Stainless steel |
UPC Certified: Yes | cUPC Certified: Yes |
WaterSense Compliant: No | Rust Resistant: Yes |
Chip Resistant: Yes | Tarnish Resistant: Yes |
Stain/Spot Resistant: Yes | Drip-Free: Yes |
Faucet Type: Cartridge | Cartridge Material: Brass |
Temperature Memory: Yes | Massage Function: Yes |
Flow Rate: 2.5 Gallons per Minute (GPM) | Adjustable Water Flow: Yes |
Shower Arm Included: Yes | Hand Shower Included: Yes |
Hand Shower Hose Included: Yes | Swivel: Yes |
Shutoff Valve Included: Yes | Rough-In Valve Included: No |
Pressure Balanced Valve: Yes | Transfer Valve Included: No |
Diverter Type: Trim with diverter | Hose Required: Yes |
Hose Included: Yes | Body Jets: Yes |
Spray Pattern: Rain | Faucet Control Type: Thermostatic |
Electronic Control Unit Included: No | Faucet Handle Included: Yes |
Escutcheon Included: No | Slide Bar Included: No |
Soap Dish Included: No | Lead-Free: Yes |
Installation Type: Wall mounted | Drain Assembly Included: No |
Overflow Included: No | Rated Operating Pressure: 80 |
Hot Limit Safety Stop: Yes | Product Care: Do not use abrasives. |
Country of Manufacture: China |
Additional Information
Hardware Finish | Chrome |
---|---|
Shipout Time | 1 - 3 days |
Brand | Aston Global |
Dimensions | Inlet Diameter: 0.375 Inches, Supply Length: 24 Inches, Faucet Hole Diameter: 4 Inches. |
SKU | A304 |
